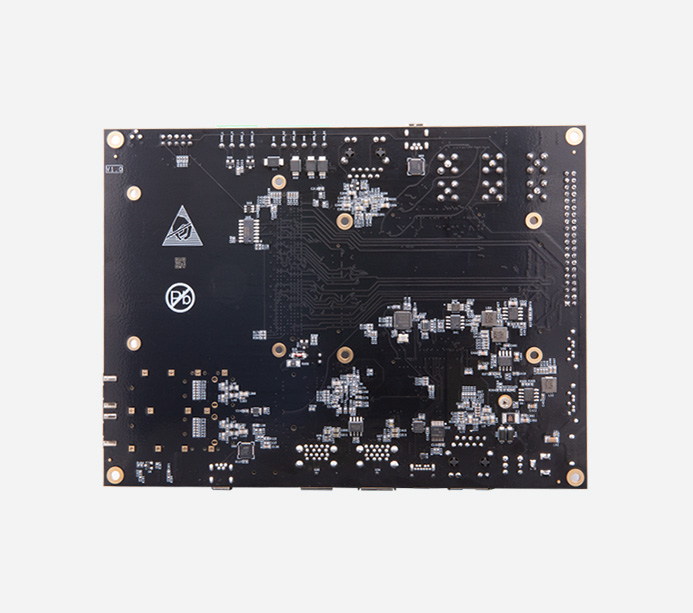

Xilinx Zynq UltraScale+ MPSoC XCZU15EG FPGA Development Board

XCZU15EG

  • Model

    AXU15EG / AXU15EGB
  • Email

    David.ding@alinx.com
  • Ean

    6971390278154
  • Price

    $ 3000

Related

Notice for purchase:

This series of development boards include AXU15EG and AXU15EGB

Only the Ethernet interface chips of the expansion board are different, and the functions are the same.

The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label.


Xilinx Zynq UltraScale+ MPSoC FPGA Board

Support XILINX Vitis-AI DPU Support Gigabit Optical Communication

Satisfy Network Communication, High-Speed Data Exchange and Storage Industrial Control, Deep Learning, AI Intelligence, Cloud Computing, 4K Video Transmission Processing, and Aerospace Applications

  • ·ARM CPU

    Quad Core ARM Cortex™-A53  + Dual Core ARM Cortex™-R5

  • ·GPU

    Mali™-400 MP2 GPU

  • ·6GB DDR4

    PS 4GB DDR4、PL 2GB DDR4

  • ·FLASH RAM

    8GB eMMC FLASH、64MB QSPI FLASH


Techinal Support

Development Software Version. Vitis 2020.1 Linux Version. petalinux 5.4.0-xilinx-v2020.1 All Doucments Saved in Dropbox, after buy the board, email to get it.

Course_S0_Development Environment
01. Vitis Installation
02. Install virtual machine and Ubuntu system
03. Install Linux version of Vitis software on Ubuntu
04.Petalinux tool installation


05. NFS service software installation
06. QT Creator development environment
07. Linux Common Commands
Remark. Vitis 2020.1

Course_S1_FPGA Experiment Tutorial
01. Introduction to Ultrascale+ MPSoC
02. FPGA Board Hardware Introduction
03. Introduction to Verilog basic modules
04. PL's "Hello World" LED experiment
05. PLL Experiment Under Vivado
06. FPGA on-chip RAM read and write test experiment
07. FPGA on-chip ROM read and write test experiment
08. FPGA on-chip FIFO read and write test experiment


09. Key Experiment in Vivado
10. PWM Breathing Light Experiment
11. UART Experiment
12. RS485 Experiment
13. PL side DDR4 read and write test experiment
14. HDMI Output Experiment (AN9134 Module)
15. HDMI Character Display Experiment
16. 7-inch LCD Screen Display Experiment (AN970 Module)
17. GTX Transceiver Bit Error Rate Test IBERT Experiment

Course_S2_Vitis Application Tutorial
01. Experience ARM, bare metal output "Hello World"
02. PS RTC Interrupt Experiment
03. PS MIO Experiment
04. PS Side UART Read and Write Control
05. PS Side Use of CAN
06. PS Side Use of I2C
07. PS Side Use of Display Port
08. PS Side SD Card Read and Write
09. PS Side Use of Ethernet (LWIP)
10. PS Side Remote Update QSPI Flash by Ethernet
11. Use of System Monitor
12. PS Side Use of EMIO
13. PL Side Use of AXI GPIO
14. PL Side RS485 Test
15. PL Side Use of Ethernet
16. Custom IP experiment
17. Use of Dual Core AMP
18. Use of “Free RTOS” under ZYNQ S
19. PL Read and Write PS DDR Data
20. Realize PS and PL Data Interaction  through BRAM
21. DMA Loop Test


22. Use of DMA--DAC Waveform Generator (AN108)
23. Use of DMA--ADC Oscilloscope (AN108)
24. Use of DMA--ADC oscilloscope (AN9238)
25. Use of DMA--ADC Oscilloscope (AN706)
26. Use the Scatter/Gather DMA Based on ADC Module (AN108)
27. Use the Scatter/Gather DMA Based on  DAC Module (AN9767)
28. AN5642 Binocular Camera Collection and Display
29. SD card read and write operation  camera capture
30. Binocular camera Ethernet transmission
31. MIPI Acquisition and Display Based on AN5641 Module
32. Use of 7 inch LCD Module
33. 7-inch Touch Screen GUI and Touch Control
34. Ethernet Transmission--ADC Acquisition Based on AN108 Module
35. Ethernet Transmission--ADC Acquisition Based on AN9238 Module
36. Ethernet Transmission-- ADC  Acquisition Based onA N706 Module

Course_S3_Linux Basic Tutorial
01. Customizing Linux with Petalinux
02. Program hello world
03. gpio Control LED
04. Add Boot Scripts and User Files
05. SD Card Root File System


06. QT and OPENCV Cross-Compilation Environment
07. Use Vitis to Develop Linux Programs
08. Vitis Accelerates Basic Platform Creation
09. NVMe SSD operation under Linux
Remark. Linux Version petalinux 5.4.0-xilinx-v2020.1

Course_S4_Linux Driver Tutorial
01. Character Device
02. A New Way of Writing Character Devices
03. Device Tree and of Function
04. pinctrl and gpio Subsystem
05. Concurrent Processing
06. gpio input
07. Timer
08. Interrupt
09. Blocking IO
10. Non-Blocking IO
11. Asynchronous IO
12. Platform
13. Platform and Device Tree


14. MISC device driver
15. Input Subsystem
16. pwm Drive
17. I2C Driver
18. USB Driver
19. SPI Drive
20. Uart Driver
21. Block Device Driver
22.NIC driver
23. DMA Driver
24. Multi-touch screen driver
25. LCD Drive

Course_S5_Linux Application Development Tutorial
01. Building a Minimalist Working Environment
02. Hello World with Remote Debugging
03. OpenCV Edge Detection
04. OpenCV+Qt Face Detection


05. GStreamer's Camera Display
06. Qt+DRM+Gstreamer Camera Display
07. Qt+GPU Camera Display
08. Linux Register Operation

Course_S6_HSL Tutorial Tutorial
01. Getting to Know Vitis HLS
02. Getting Started
03. HLS Interacts with CPU Registers
04. How to use the built-in Functions in the xfopencv Library
05. Image RGB to Grayscale Conversion
06. Image RGB to YCrCb


07. Image Morphological Filtering
08. Image overlay
09. Image Contrast Adjustment
10. Corner Detection
11. SOBEL operator realizes edge detection
12. Canny Operator Realizes Edge Detection
13. How to Implement opencv Simulation with vitis HLS

Course_Vitis-AI Basic
01. Docker Environment Construction
02. Vitis-AI Development Process


03. Neural Network Training based on Keras Framework
04. Debugging Tools


Product package






Development board

AN9767 package

AN706 package

AN9238 package

Video package

Deluxe Package

Development board

Downloader

AN9767





AN706





AN9238





MIPI camera





7-inch screen






Package supporting module, click to learn more


AN9767


AN706


AN9238


  AN5641 MIPI camera


7-inch screen


key Features

·Core Board SOM


*Core Board, Click to Buy >>



·FPGA Board



Product Parameters


Core Board Main Parameters

Core Board SOM

ACU15EG

FPGA Chip

XCZU15EG-2FFVB1156I

Chip CPU

4x ARM Cortex-A53, 1.333GHz,双核 Cortex™-R5, 533MHz

Chip GPU

Mali™-400 MP2

Core Board RAM

PS DDR4, 4GB, 64bit, 2400Mbps
PL  DDR4, 2GB, 32bit, 2400Mbps

PS end High-Speed Connector

PCIe® Gen2 x4, 2x USB3.0, SATA 3.1,DisplayPort, 4x Tri-mode Gigabit Ether net

PS end General Connector

2xUSB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B,2x I2C, 2x SPI, 4x 32b GPIO

PL GTH

12.5Gb/sx16

Chip Level

Industrial Grade

Chip Working Temperature

-40℃-85℃

Speed Grades

-2

Logic Cells

747K

CLB Flip-Flops

682K

Look Up Tables (LUTs)

341K

Global Clock

4

DSP Slices

3,528

MAX.DISTRIBU-TED RAM

11.3Mb

BLOCK RAM

26.2Mb

ULTRARAM

31.5Mb

EMMC FLASH

8GB

QSPI FLASH

64MB

HP I/O

96

HD I/O

66

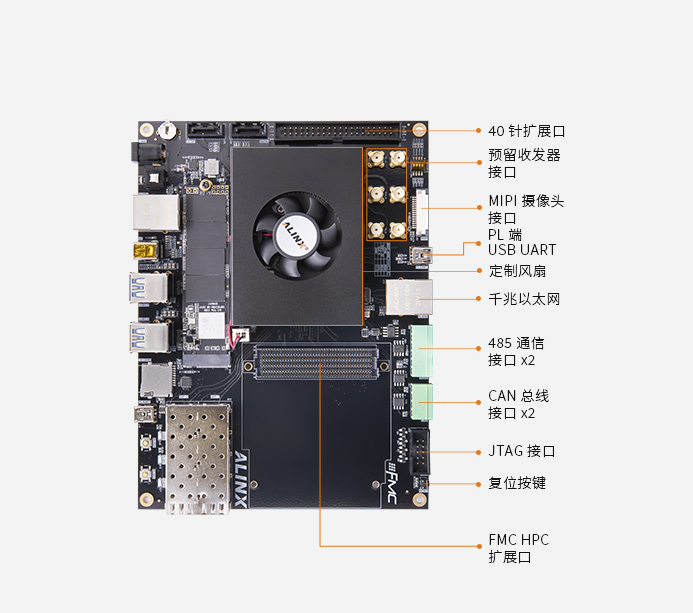

Interface and Function

DDR4

PS DDR4, 4 Pieces of 1G DDR4, 4GB Total, 64bit, Data Speed 2400Mbps PL DDR4, 2 Pieces of 1G DDR4, 2GB Total, 32bit, Data Speed 2400Mbps

QSPI Flash

2 Pieces of 256 Mbit QSPI Flash, Used as FPGA User Data Storage

eMMC Flash

8GB, Used as Large-Capacity Storage System

DP Interface

Mini Display Port up to 4K@30Hz or 1080P@60Hz Output (ALINX customized DP to HDMI cable, need to buy Separately )

M.2 Interface

Used to Connect the M.2 SSD Solid State Drive (Need to Buy it Yourself)

MIPI Interface

Used to Connect ALINX MIPI Interface OV5640 Camera Module AN5641

SFP Interface x 2

Data Communication Receiving and Transmitting Speed up to 12.5Gb/s

USB 3.0 x 4

Used to Connect External USB Peripherals

USB Uart x 2

Used for Serial Communication with PC or External Devices

Gigabit Ethernet

Two 10/100/1000M Ethernet with RJ-45 Interfaces for Data Exchange

SATA Interface

2 SATA interfaces, Used to Connect Hard Disk to Store Data

Crystal Oscillator

33.333MHz Provide for the PS system 200MHz Provide DDR Reference Clock for the PL Logic

RS485 Bus Interface x2

Used for 485 communication Service

CAN Bus Interface x2

Used for CAN Communication Service

FMC Expansion Ports

Standard FMC HPC Expansion PortCan be Connect with Various XILINX or ALINX FMC Modules (HDMI Input/Output Module, Binocular Camera Module, Hight Speed AD Module).

JTAG

10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

40-Pin Expansion Ports

One 40-Pin Expansion Ports (0.1 inch Pitch), Can be Connect with Various ALINX Modules (Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules).

EEPROM

EEPROM 24LC04 with IIC Interface On-Board

Temperature Sensor

Sensor Chip LM75, Used to Detect the Ambient Temperature

SD Card Slot

1 Micro SD Card Slot, Support SD Mode and SPI Mode

Real Time Clock

RTC with a Battery Holder, The Battery Model is CR1220

LED

5 LEDs, 1 LED in the Core Board, 4 LEDs in the Carrier Board

KEYs

3 KEYs, 1 Reset KEY, 2 User KEYs


Power Supply Parameters

Voltage Input

+12 V DC

Current Input

Max. Current 3A

Package List

FPGA Board

1

DC Fan (Fixed on the Board)

1

Mini USB Cable

1

USB Downloader Cable

1 Set

12V Power Adapter

1

Transparent Protection Board

1

TF Card

1

Card Reader

1

Structure Size

Size Dimension

Core Board 3.15 inch x 2.36 inch, Carrier Board 7.09 inch x 5.31 inch

Number of Layers

16-Layer Core Board PCB, 8-Layer Carrier Board PCB Reserve independent power layer and GND layer


XILINX VITIS-AI DPU

AI recognition detection, depth computing learning


Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring,
traffic safety, smart construction site, smart hotel, smart agriculture, Internet of Things

Vehicle Identification

Infrared Vehicle Identification


Pedestrian recognition

Indoor Person Recognition

Fire detection

Helmet detection

Concrete defect detection

PCB defect detection

Super Combination with Mali™-400 MP2 GPU, 64bit DDR4 RAM

Industiral Grade Chip Dual ARM Application Processor

Quad Core   ARM Cortex-A53,1.333GHz;Dual Core  Cortex™-R5, 533MHz;PS 4GB DDR4,64bit;PL 2GB DDR4,32bit


Rich extension interface

High-Speed Transmission

Intelligent Recognition, Image and Video Processing Security Monitoring, Machine Vision

Intelligent Recognition, Image and Video Processing Security Monitoring, Machine Vision Rich Interfaces in the Carrier board. Standard FMC HPC Interface, SFP Interface x 2, M.2 SSD Interface, DP Interface, MIPI Camera Interface, USB 3.0 x 4, Gigabit Ethernet x 2 USB Uart x 2, SD Card Slot, CAN Bus Interface x2, RS485 Bus Interface x2 Apply to AI Intelligence, Cloud Computing, Deep Learning Network Communication, High-Speed Data Transmission Video Image Processing and Industrial Control

SFP Optical Fiber Interface

SFP Transmission Communication

Receiving and Transmitting Speed up to 12.5Gb/s



Data Collection Display

Signal Data Acquisition System

AN9767/AN706 Module On-Board Demo


*The Signal Source Output Signal is Connected to the AN9767 Module, and the Waveform Signal is Displayed through the Oscilloscope
*The Signal Source Output Signal is Connected to the AN706 Module,Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the HDMI Interface of the FPGA Development Board

Intelligent Identification, Medical Security Vehicle Digital, Industrial Control, Smart Grid

Video image Collection Demo Camera Acquisition System

MIPI Camera Module AN5641 On-Board Demo

    The MIP Camera Module AN5641 for Video Capture and Displays it on the Monitor through the Mini DP Interface

The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
