XILINX Zynq-7000 PCie FMC HPC FPGA Development Board XC7Z100

XC7Z100

Model
AX7450/ AX7450B
Email
David.ding@alinx.com
Ean
6971390271315
Price
$ 2600

Details
Download
Service

Notice for purchase:

This series of development boards include AX7450 and AX7450B.

Only the Ethernet interface chips of the expansion board are different, and the functions are the same.

The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label.

Xilinx Zynq 7000 FPGA Board

PCIe 2.0 x 8 socket, FMC HPC Expansion Interface Gigabit Ethernet, USB2.0, USB Uart, JTAG, SMA

Apply to High Speed Data Transmission and Exchange Data Processing Storage, Video Transmission Processing

Key Features

·FPGA Board

Product Parameters

Main Parameters

FPGA Board

AX7450

FPGA Chip

XC7Z100-2FFG900

Kernel

Dual-Core ARM Cortex-A9, Main Frequency 800MHz

PS -end RAM

1GB DDR3, Data Rate 1066Mbps, 32bit

PL -end RAM

2GB DDR3, Data Rate1600Mbps, 64bit

Transceivers

16 -Channels Support PCIE Gen2 x 8

Speed Grades

-2

Working Temperature

-40°C~85°C

Look Up Tables (LUTs)

277,400

CLB Flip-Flops

554,800

EMMC FLASH

8GB

Chip Level

Industrial Grade

Logic Cells

444k

Multiplier

2020(18x25MACCs)

Block RAM

26.5Mbit

QSPI FLASH

512MBit

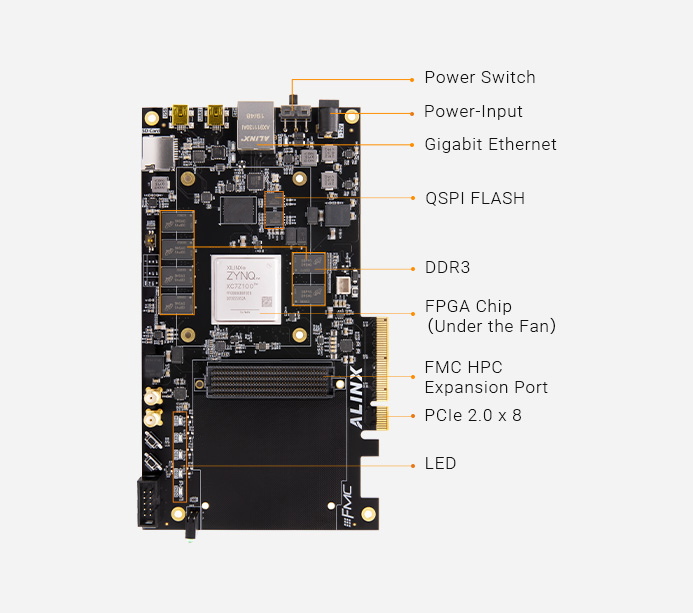

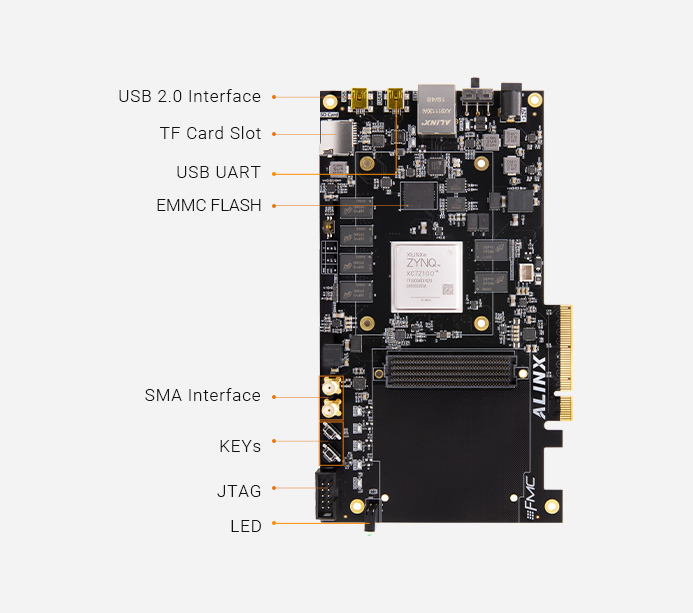

Interface and Function

DDR3

2 Pics of 512MB DDR3 on the PS Side, a total of 1GB, 32bit Bus can be Used as ZYNQ Chip Data Cache, Operating System Memory. 4 Pics of 512MB DDR3 on the PL Side, a total of 2GB, 64bit bus can be Used as FPGA Data Storage, Image Analysis Buffer Data Processing

QSPI Flash

2 Pieces of 256Mbit, Used as FPGA User Data Storage

EMMC Flash

8GB EMMC FLASH Memory Chip is Mounted on the PS Side Used as User Stores Operating System Files or other User Data

PCIe 2.0 x 8

Support PCI Express 2.0 Standard, Standard PCIe x 8 High-Speed Data Transmission Interface. Each rate can be up to 5GBaud

Ethernet Interface

Gigabit Ethernet RJ-45 Interfaces for Ethernet Data Exchange

JTAG

JTAG Interface to Debug and Download ZYNQ System

USB 2.0

Used for OTG Communication with PC or USB Device

USB Uart

Used for Serial Communication with PC or External Devices

TF Card Slot

SD Card for Store Operating System Image and File System

Crystal Oscillator

33.333Mhz Provide Stable Clock Source for the PS System
50MHz, Provide Extra Clock for PL Logic
Programmable Clock Chip provide the Clock Source for GTX and a Reference Clock for PCIE, SFP and DDR operations

SMA Interface

2 SMA Interfaces, Connect External Trigger Signal or Clock Signal

LED

1 Power Indicator LED, 1 DONE Indicator LED, 4 User Debugging LED 1 Front Panel Dual-color LED.

KEYs

2 Keys, 1 Reset Key, 1 PL User Key.

Power Supply Parameters

Voltage Input

+12V DC

Ｃurrent Input

Max. Current 2A

Package List

FPGA Board

DC Fan

USB Downloader Cable

1 Set

TF Card

12V Power Adapter

Card Reader

Mini USB Cable

Structure Size

Size Dimension

7.49 inch x 4.20 inch

Number of Layers

4-Layer PCB

XILINX/ALINX FMC Module

Standard FMC HPC Interface

84 Pairs of Differential IO Signals 8 High-Speed GTX Transceiver Signals

The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
