Xilinx Spartan-7 SOM FPGA Core Board XC7S50

XC7S50

Model
AC7050B
Email
David.ding@alinx.com
Temperature class
-40℃~85℃
Ean
6971390271841
Price
$ 280

Details
Download
Service

Xilinx Spartan-7 SoM FPGA Core Board

Industrial Grade 1GB DDR3

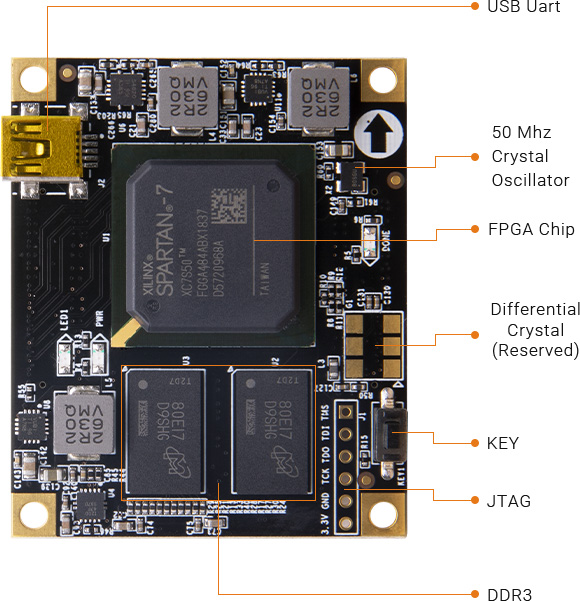

key Features

Corresponding Development Board

·AX7050

*Learn about the corresponding development board, Click to see details>>

PRODUCT PARAMETERS

FPGA Chip Parameters

Core Board Chip

AC7050B

FPGA Chip

XC7S50-1FGGA484I

Logic Cells

52160

DDR3

1GB, Data Frequency 333.3MHz

CLB Flip-Flops

65200

Logic Cells

52160

DSP

120

Look Up Tables (LUTs)

8150

Block RAM

2700Kb

Expand IOs

114

Voltage Adjustable IOs

LVDS

37 Pairs

Chip Level

Industrial Grade

Speed Grades

-1

Working Temperature

-40°C~85°C

Interface and Function

QSPI FLASH

128Mb, Used as Storage for FPGA Configuration Files and User Data

DDR3

2x 512MB DDR3 32bit, Data Rate 667Mbps

JTAG

Reserve a 6-pin JTAG interface for Download and Debugging

Ｃrystal Oscillator

50MHz Provide Stable Clock Source for the System
Reserved One Crystal Oscillator Welding Plates for user

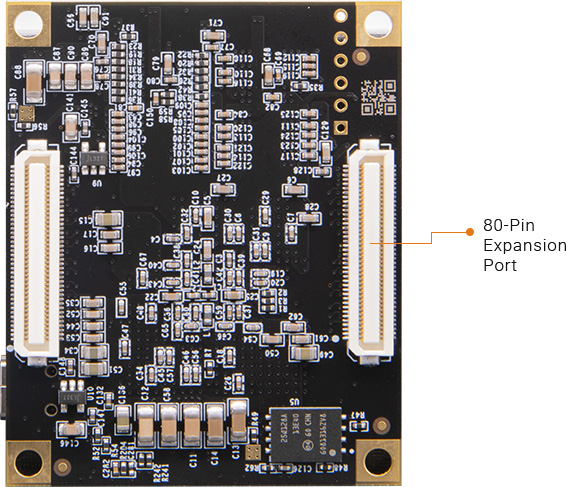

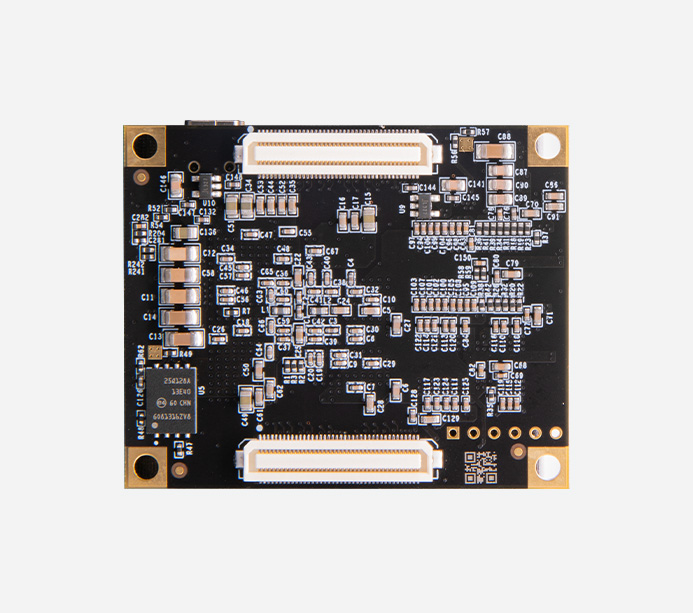

Expansion Ports

2x 80-Pin Panasonic Industrial Grade Connectors ( AXK580137YG ) The matching connector in the carrier board is AXK680337YG

Power Supply Parameters

Voltage Input

+5V DC

Package List

FPGA Core Board

Mini USB Cable

80-Pin Board to Board Connector (Panasonic AXK680337YG )

Structure Size

Size Dimension

55 x 45 x 8.4mm

Connector height

2.0mm

Number of Layers

8-Layer Core Board PCB

Board Thickness

1.6mm

Expansion Port Definition


Get Started Quickly, Shorten Learning and Development Time

Provide Documents to Study

Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board


The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
