ALINX 4K HDMI Video Input / Output Module HPC FMC Board

  • Model

    FH1159
  • Email

    David.ding@alinx.com
  • Ean

    6971390279267
  • Price

    $ 800

Related


To HDMI FMC board

The module interface from FMC interface to one channel of HDMI input and one channel of HDMI output is a standard HPC interface, which is used to connect FPGA development board


Main Parameters

FMC connector

HPC connector

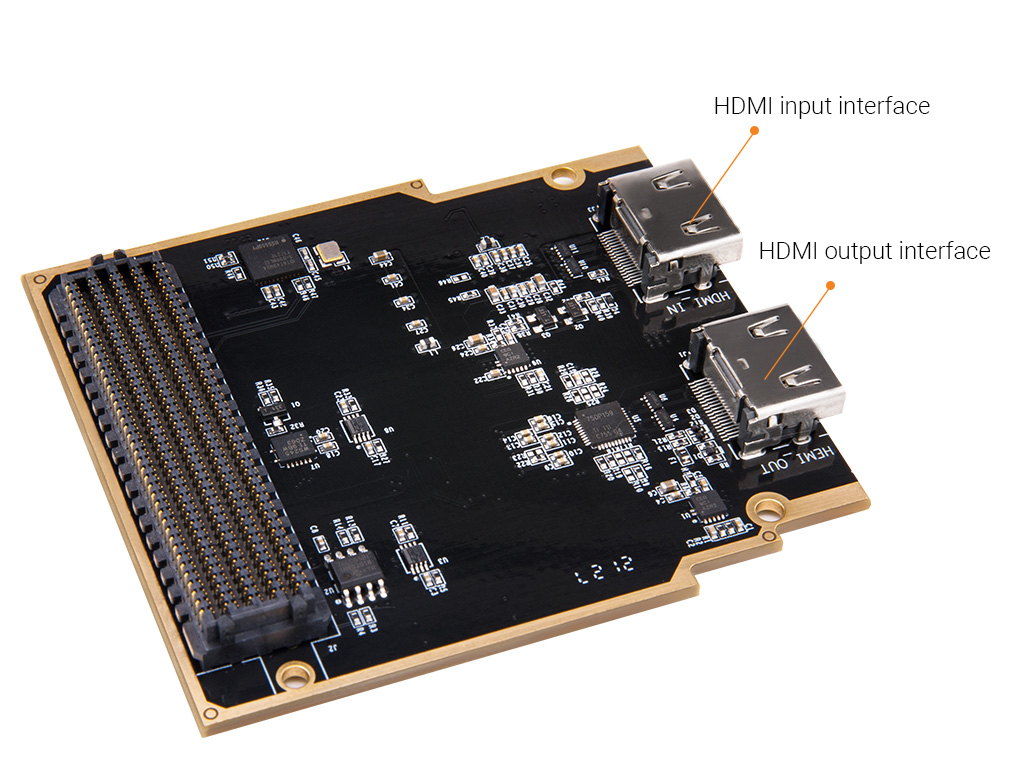

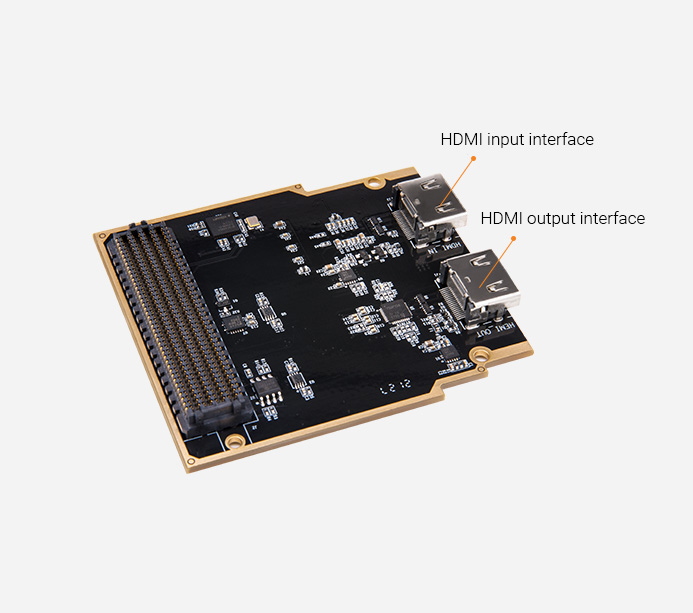

HDMI video output interface

Top support 4K@60Hz output

HDMI video input interface

Top support 4K@60Hz Input, support data input in different formats


Interface display



Functional structure

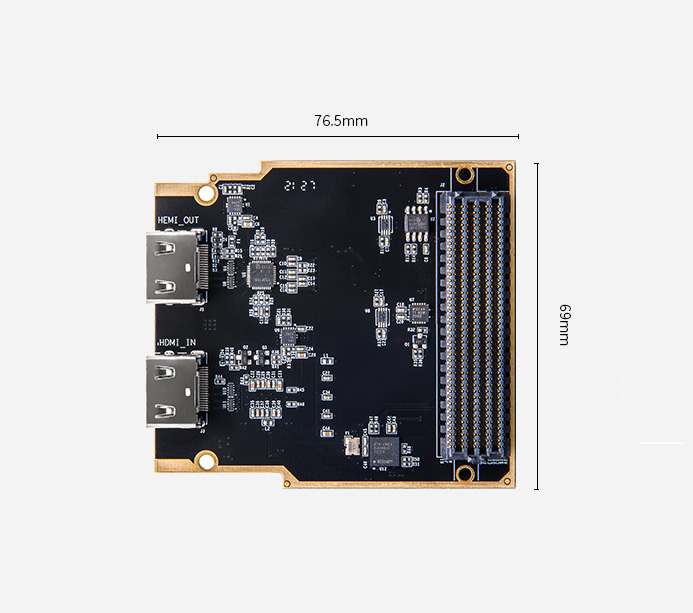

Size structure



Expansion Port Definiton

FMC HPC Interface

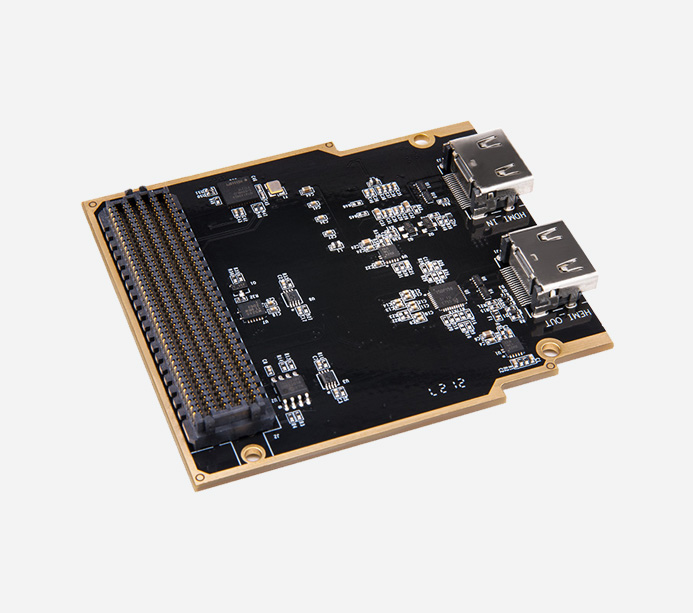

Product display



The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
