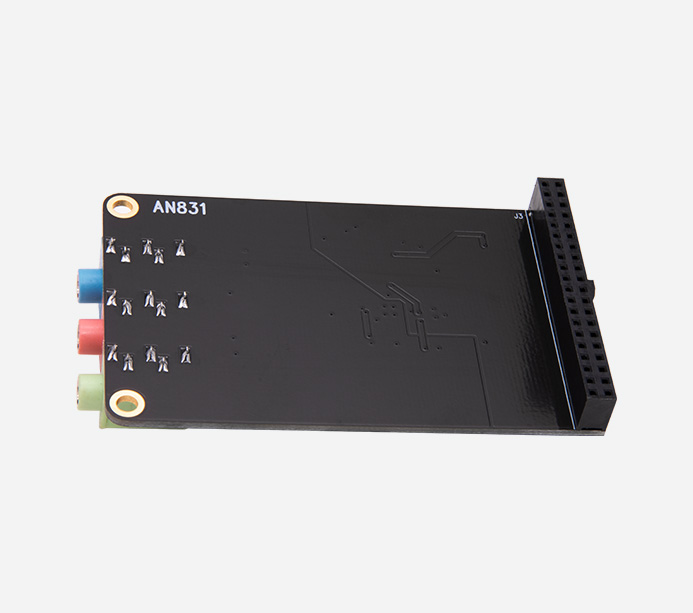

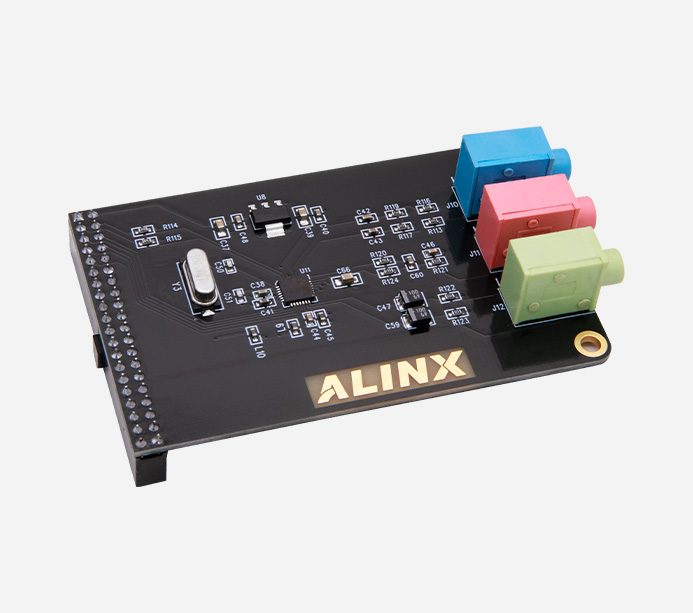

ALINX Audio acquisition module WM8731

WM8731

  • Model

    AN831
  • Email

    David.ding@alinx.com
  • Ean

    6971390271063
  • Price

    $ 22

Related


WM8731 Audio module

Realize A/D and D/A conversion of sound signal


Product information


Parameter function

Module model

AN831

Audio chip

WM8731

Module size

81*51mm

Interface function

Microphone input, audio input, audio output

Module interface

40 pin 2.54mm spacing row seat, direction down

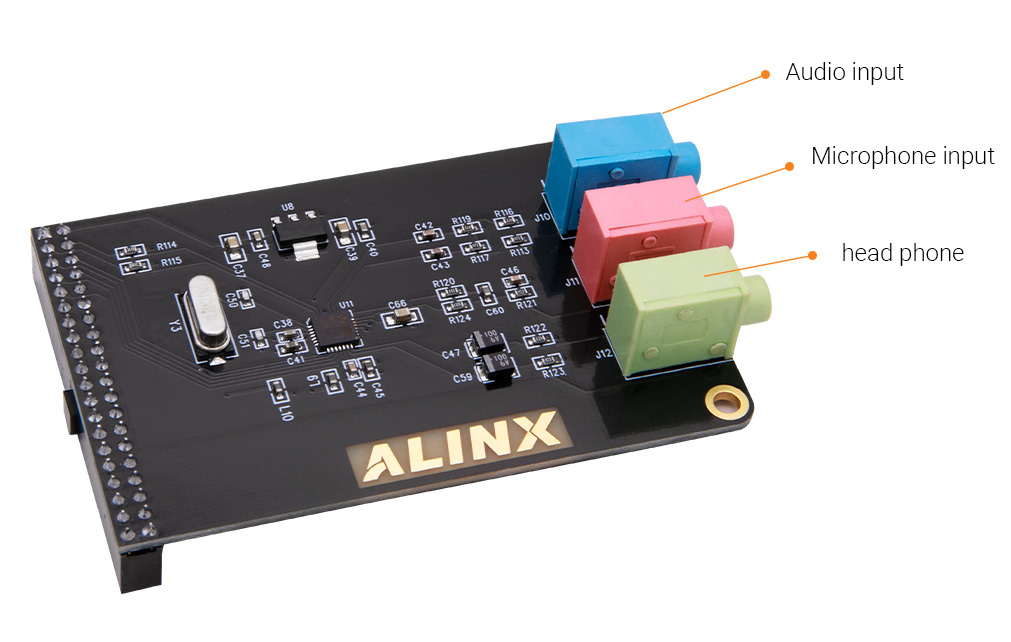

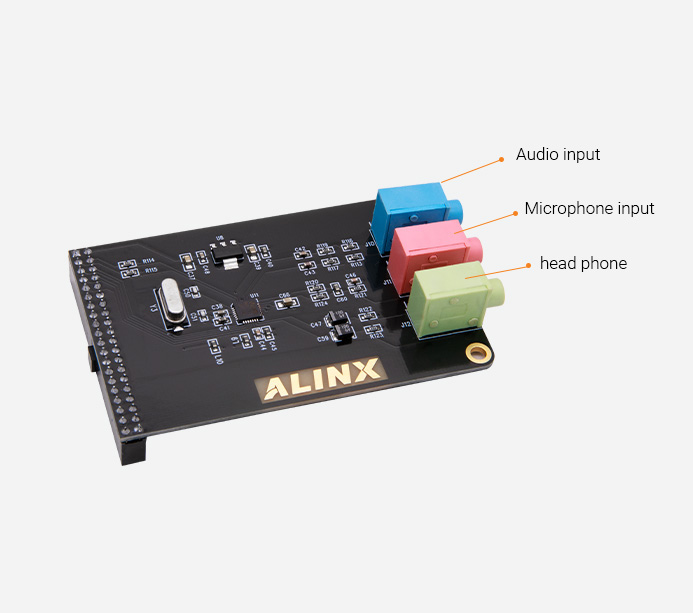

Interface display


Pin assignment table


Expansion Port Definiton

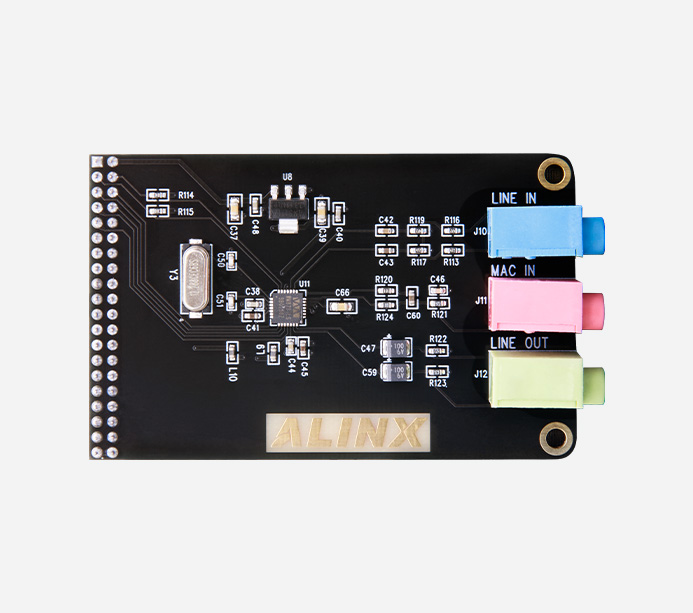

Product display




The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
