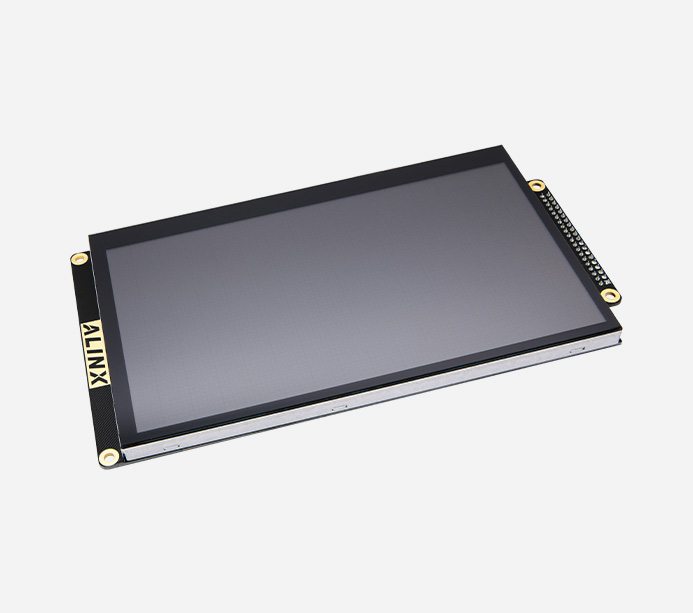

ALINX 7 inch 5-point capacitive screen module

  • Model

    AN970
  • Email

    David.ding@alinx.com
  • Ean

    6971390271087
  • Price

    $ 88

Related


7-inch Capacitive LCD Module

7-inch TFT LCD LCD screen LCD screen module is composed of TFT LCD screen, touch screen and driver board


Product Parameters


参数功能

model

A070VW05 V2

size

7.0 inches

resolving power

800*3(RGB)*480

surface treatment

Foggy surface

Aspect ratio

16:9(Width: height)

Pixel spacing

0.1905 X 0.1905mm(Horizontal * vertical)

weight

155g(Typ.)

Display area

152.40 X 91.44mm(Horizontal * vertical)

Appearance dimension

165.0 X 104.0mm(Horizontal * vertical)

Interface display


Size structure


Expansion Port Definiton



Product display




The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
