ALINX 5Million binocular camera module OV5640

OV5640

  • Model

    AN5642
  • Email

    David.ding@alinx.com
  • Temperature class

    0℃~50℃
  • Ean

    6971390271056
  • Price

    $ 88

Related


OV5642 Binocular Camera Module

Two pieces of American omnivision CMOS chip image sensor OV5640 are adopted, which supports the function of auto focusing, and realizes image transmission through DVP interface and FPGA connection



Product Parameters



Chip Model

OV5640

Lens Parameters

5MP / M12 Interface, Focal Length 0.14 inch Monitoring Angle 80-96 Degrees

Binocular Distance

1.57 inch Center Distance of Photosensitive Chip

Working Temperature

0°C~50°C

Module Interface

40-pin 0.1 inch spacing female header

Size

2.76 inch x 1.57 inch


Expansion Port Definiton

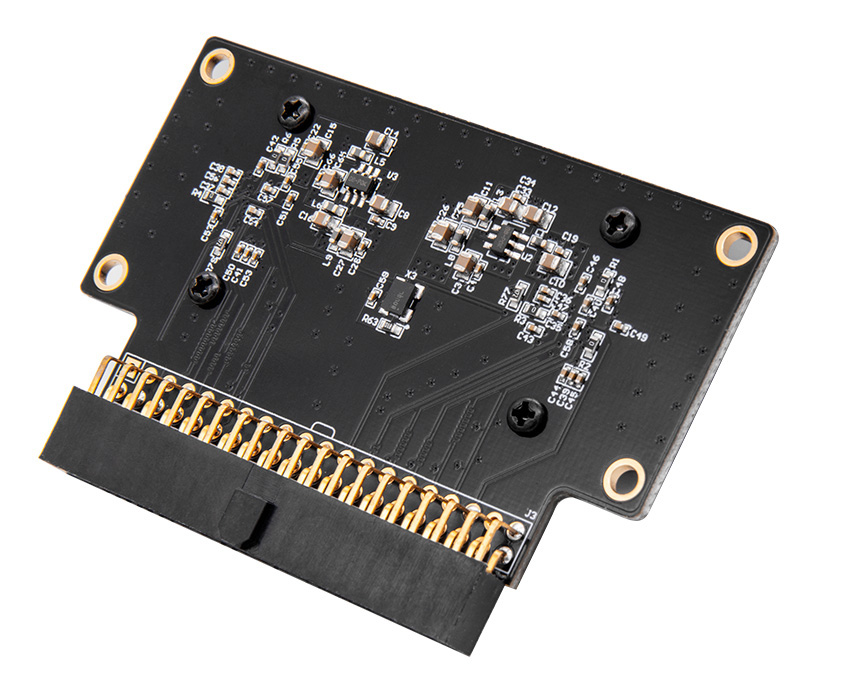

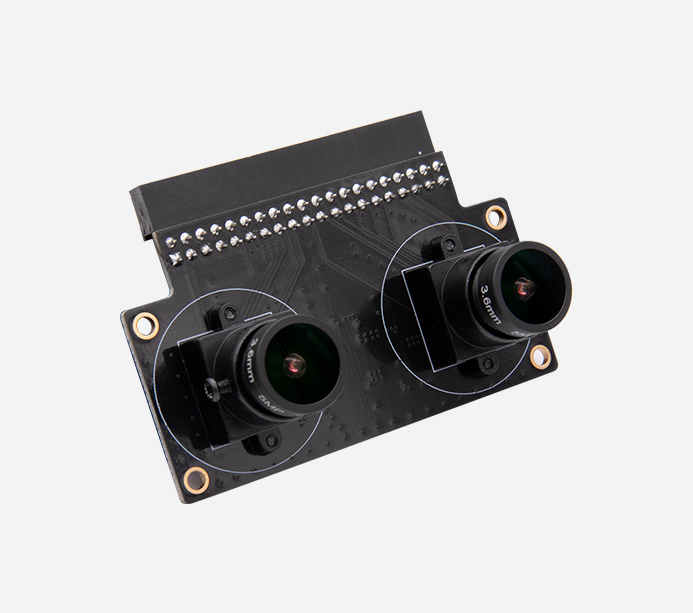

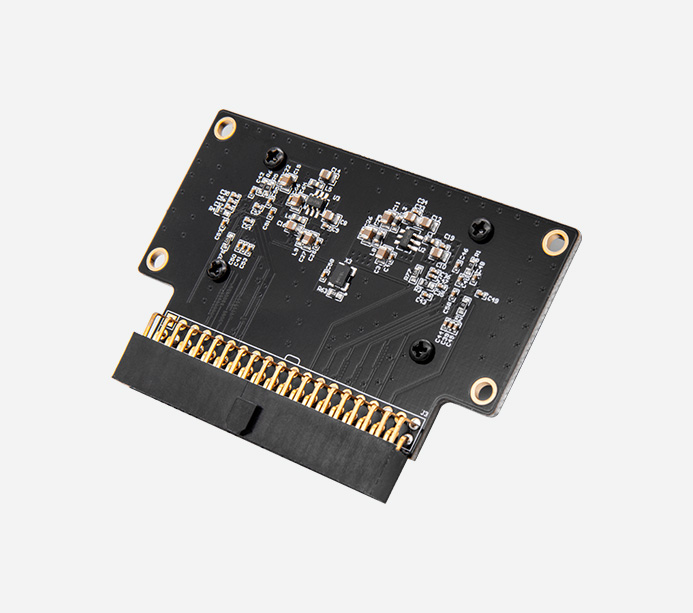

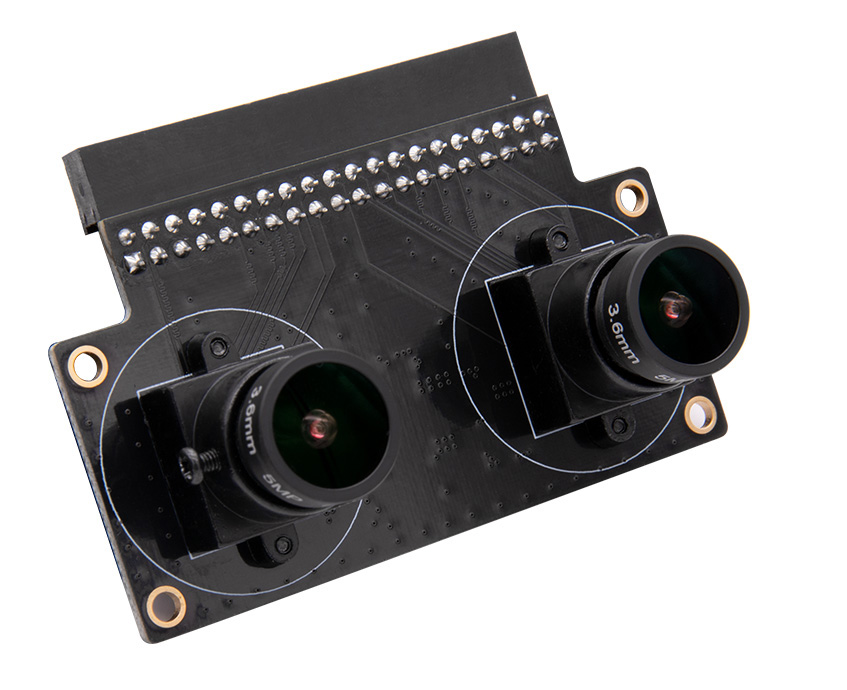

Product display




Experimental Results


The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
