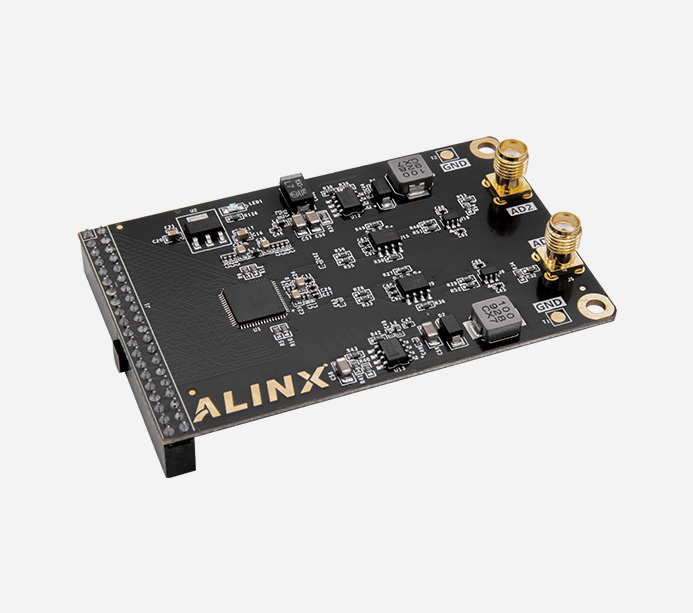

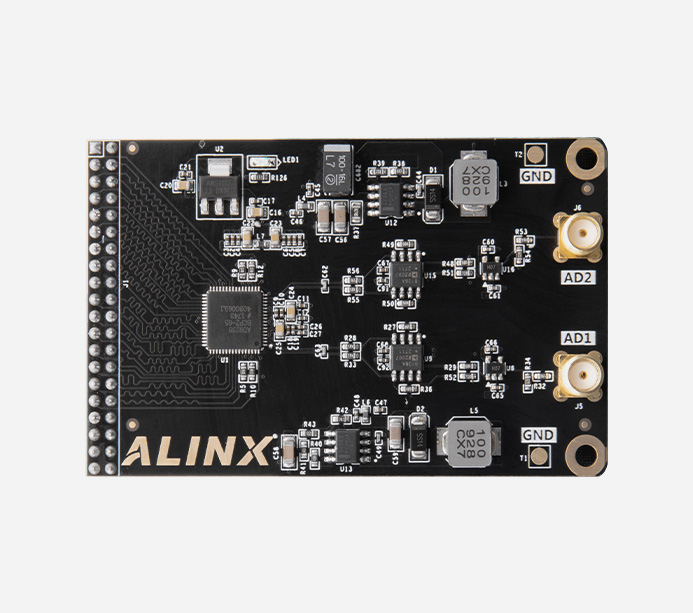

ALINX Dual Channel 65MSPS 12bit AD Analog digital signal conversion module AD9238

AD9238

  • Model

    AN9238
  • Email

    David.ding@alinx.com
  • Temperature class

    -40°~85°
  • Ean

    6971390270530
  • Price

    $ 80

Related


2-Channels AD Module

2-way 65msps, 12 bit analog to digital signal module supports 2-way ad input conversion





Product Parameters


Module Parameters

Chip Model

AD9238

Number of Channels

2 Channels

Sampling Rate

65MSPS

Number of Bits

12bit

Digital Interface Level Standard

+3.3V CMOS Level

Input Range

-5V~+5V

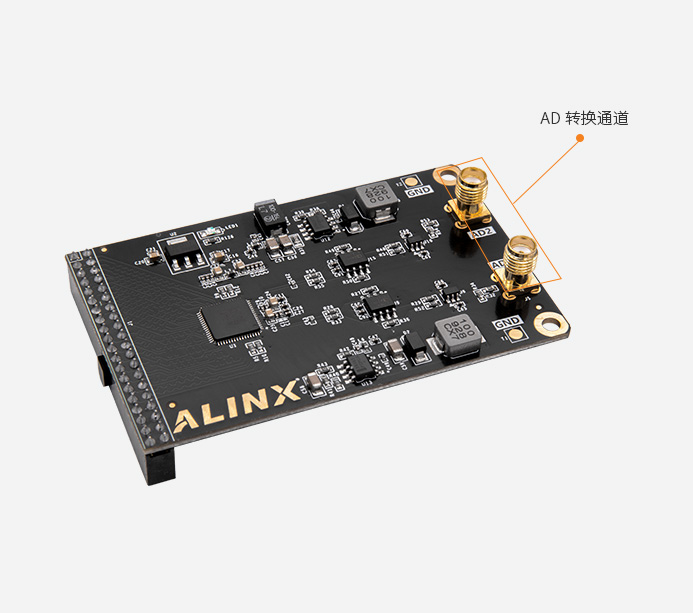

Analog signal input interface

SMA interface

Measurement Accuracy

about 10mV

Working Temperature

Working Temperature

Module Interface

40-pin 0.1 inch spacing female header Size: 3.19x2.01 inch

Interface display


Structure Size


Functional structure



Expansion Port Definiton



Product display





The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
