AD9767
Model
AN9767Temperature class
-40℃~85℃Ean
6971390271018Price
$ 44
Development of 4-way 12bit 250MSPS AD input analog-to-digital LPC FMC subboard
Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU3EG
Xilinx Zynq UltraScale+ MPSoC AI FPGA Development Board XCZU2CG
XILINX Zynq7000 SoC FPGA Development Board XC7Z010
Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU5EV

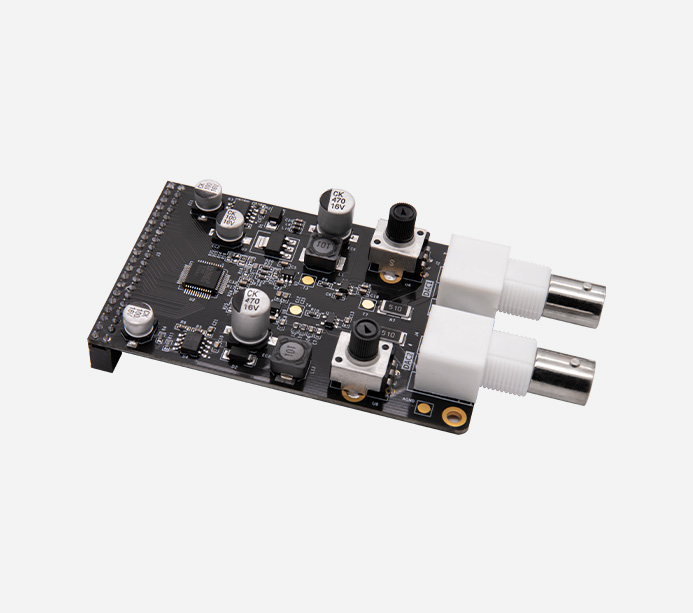

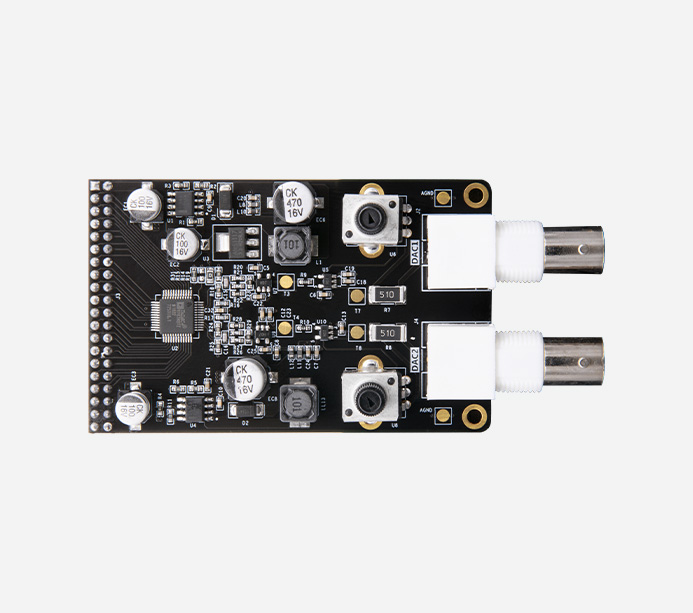

Support independent dual channel, 14 bit, 125msps digital to analog conversion. Two BNC connectors are used for analog signal output
DA Conversion Chip
AD9767
DA Conversion channel
2-Channel
DA bits
14bit
DA update rate
125 MSPS
Output Voltage range
-5V ~ +5V
PCB layers of Module
-4-Layer, Independent Power Layer and GND Layer
Module Interface
40-pin 0.1 Spacing Female Header, Download Direction
Output Interface
2-Port BNC analog output interface (use the BNC line connect to the oscilloscope directly）
Working Temperature:
-40°C~85°C
Documents Provided
Schematic, FPGA Testing programs
