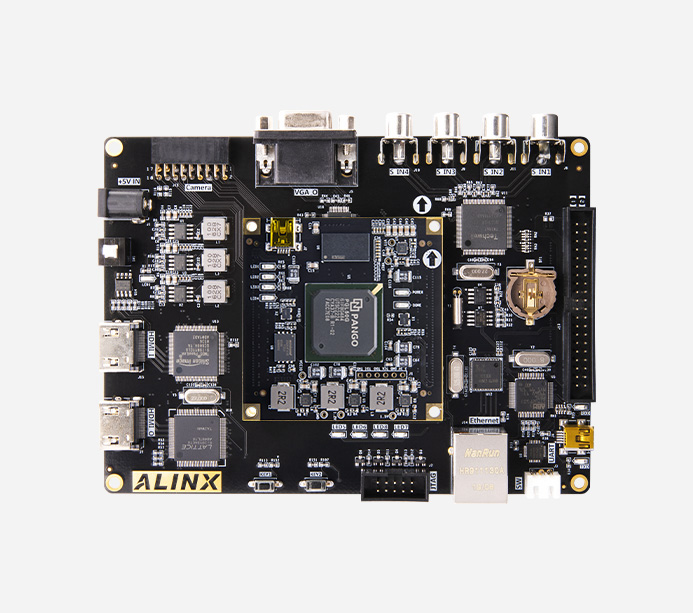

PGL50G
Model
AVP50GPrice
$ 264HDMI input and output, 4-channel AV input, JTAG debugging interface, Ethernet, camera interface, 1-channel 40-PIN extension port, RTC clock, etc. meet the requirements of video image processing and communication transmission
Supporting Verilog HDL Demos and Docuemnts, All Doucments Saved in Dropbox, after buy the board, email to get it.
01. Pango Design Suite 2021.1
-sp7 Installation
02. LED water lamp experiment and simulation
03. Key detection experiment
04. PLL phase-locked loop output test
05. I2C Interface EEPROM Experiment
06. Key debounce experiment
07. HDMI, VGA color bar output
08. 4.3 inch screen color bar output
09. 7-inch screen color bar output
10. DDR3 read and write data test
11. AN831 Recording and Playback
12. Character HDMI, VGA display
13. Character 4.3 inch screen display
14. Character 7-inch screen display
15. RGB to YCbCr output display
16. YCbCr to RGB output display
17. YCbCr444 to YCbCr422 output display
18. YYCbCr44 output display
19. HDMI input loop display
20. AN5640 monocular camera captures HDMI display
21. AN5640 camera captures a 4.3 inch screen display
22. AN5640 camera captures 7-inch screen display
23. AN5642 binocular camera captures HDMI display
24. CVBS single channel HDMI display
25. CVBS single channel HDMI freeze display
26. CVBS single channel HDMI overlay character display
27. CVBS dual channel HDMI picture in picture display
28. CVBS dual channel HDMI red blue 3D display
29. CVBS four channel HDMI display
30. Camera edge detection HDMI display routine
31. Camera edge detection 4.3 inch screen display routine
32. Camera edge detection 7-inch screen display routine
33. AD9238 waveform display routine
34. AD7606 waveform display routine
35. ADDA Test Routine
36. AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
37. AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
38. Gigabit Ethernet Transmission Experiment
39. AD9238 Ethernet transmission routine
40. AD7606 Ethernet transmission routine
41. AD9280 Ethernet transmission routine
42. AN5640 Gigabit Ethernet for video transmission
43. AN5642 Gigabit Ethernet for video transmission
AN108 Collection Packag
AN9767 Collection Package
AN706 Collection Package
AN9238 Collection Package
AN5642 Camera Pacakge
Video Processing Packge
Luxury Package
FPGA Board
●
●
●
●
●
●
●
USB Downloader
●
●
●
●
●
●
●
AN108
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
AN5642
●
●
AN5640
●
●
4.3-Inch LCD
●
●
Supporting Modules in the Package, Click to Learn More
Learn More about the Core Board, Click to View>>
FPGA Chip
PGL50G-61FBG484
Chip level
Chip speed level 6, chip temperature level industrial grade
FF
64200
LUT4
51360
RAM ( 18Kbit/piece )
134
APM ( 18*18 )
84
PLL
268,18Kb
AES
1
IO
172

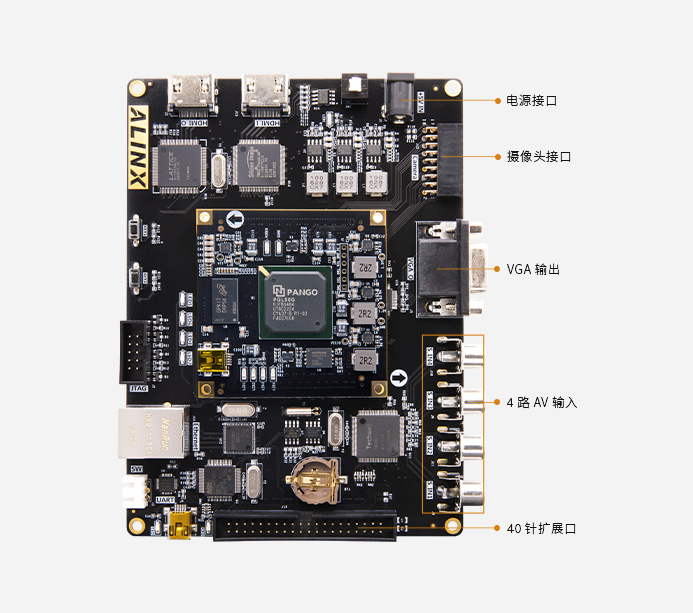

HDMI input
1 HDMI input, supporting 1080P@60Hz Input, supporting data in different formats
HDMI output
1 channel HDMI output, supporting 1080P@60Hz Output, supports 3D output
VGA output
1 channel VGA output, supporting RGB digital input and VGA interface output, supporting 240MSPS conversion rate, supporting 1080p@60Hz video image output
AV input
4-way AV input interface, PAL / NTSC / SECAM automatic recognition, supporting 720 * 576 inputs
Gigabit Ethernet
10 / 100M / 1000M Ethernet RJ-45 Interfaces for Ethernet Data Exchange
USB UART
Used for Serial Communication with PC or External Devices
ARM controller
1 ARM chip, configured with I2C for interface chip registers and FPGA data communication
CMOS Camera Interface
18-Pin Camera Interface, for 5 million OV5640 Camera Module AN5640
Crystal oscillator
One 50M active crystal oscillator and one 27M active crystal oscillator each
Real Time Clock
RTC with a Battery Holder, The Battery Model is CR1220
JTAG
10-pin 0.1-inch Standard JTAG Port for Debug and Download
SD Card Slot
1 Micro SD Card Slot, Support SPI Mode
40-Pin Expansion Ports
one 40 pin 2.54mm spacing expansion port, capable of connecting various modules (binocular camera, LCD screen, high-speed AD module, etc). The expansion port includes 1x 5V power supply, 2x 3.3V power supplies, 3 ground supplies, and 34 IO ports
power supply
+5V DC，Max. Current 2A
FPGA Board
1
USB Downloader
1 Set
Mini USB Cable
1
5V Power Adapter
1
Transparent Protection Board
1
AV Cable
4
Size Dimension
150mm x 110mm
Number of Layers
8-Layer Core Board PCB, 4-Layer Carrier Board PCB
Professional video image processing FPGA development board, which can be used for security monitoring, video image processing development, FPGA video image processing and communication, high-speed data acquisition
Single camera module AN5640 for video capture, HDMI interface display to display
HDMI interface input Tmall Magic Box video, HDMI / VGA interface output to monitor
Camera collects AV interface input, HDMI / VGA interface outputs to monitor
Camera collects AV interface input, HDMI / VGA interface outputs to monitor
4-way camera acquisition AV interface input, HDMI / VGA interface output to monitor
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
