Xilinx Zynq UltraScale+RFSoC Gen3 ZU47DR FPGA chip integrated RF direct sampling data converter high-speed transceiver

ZU47DR

  • Model

    ACRF47
  • Email

    David.ding@alinx.com
  • Price

    $ 11227


Vertical Industry Solution Board

Radio frequency industry

RFSOM integrates hardware and software to help you provide a prototype of a high-performance wireless receiver system and perform air signal acquisition and analysis. In addition, RFSOM adopts a RF direct sampling structure with eight independent transmitter and receiver channels. It integrates a programmable Xilinx RFSoC FPGA minimum system, supports software defined radio development architecture, has large bandwidth and large-scale computing processing capabilities, and can be used for wireless communication prototype verification, spectrum monitoring, signal intelligence, and broadband acquisition and recording applications. The RFSOM is also equipped with a 19.2 MHz constant temperature crystal oscillator (OCXO) reference clock, which improves frequency accuracy and synchronization.

  • ·5G FR1/FR2 RF and baseband

  • ·Phased array system

  • ·Radar system

  • ·Software Radio

  • ·Spectrum monitoring

  • ·Medical system


Frontier application development
Ideal RF testing platform

Deep integration of ARM, programmable logic, and high signal processing bandwidth

  • 4GB

    PS DDR4

  • 2GB

    PL DDR4

  • 1Gb

    QSPI FLASH

  • 28.21Gb/s

    8 GTY

  • 5GSPS

    8 14bit ADC

  • 9.85GSPS

    8 14bit DAC




Application area



5G and LTE Wireless

With Zynq™ RFSoC, wireless infrastructure manufacturers can achieve previously unattainable footprint and power reduction, critical to Massive MIMO deployment.







Remote-PHY for Cable Access DOCSIS 3.1

Zynq UltraScale+™ RFSoC enables cable access multi-service operators (MSOs) to move PHY layer processing closer to home with remote PHY nodes, increasing network capacity.









Phased Array Radar/Digital Array RADAR

As a single-chip TRX solution for scalable, multi-function, phased array radar, the Zynq UltraScale+ RFSoC enables low latency transmit and receive for optimal response time in early warning scenarios.







Test & Measurement

Designers can build high-speed multi-function instruments for signal generation and signal analysis by using direct RF-sampling, highly flexible, reconfigurable logic, and software programmability in Zynq UltraScale+ RFSoC.









Satellite Communications

Designers can build high-speed multi-function instruments for signal generation and signal analysis by using direct RF-sampling, highly flexible, reconfigurable logic, and software programmability in Zynq UltraScale+ RFSoC.

RFSOM series hardware structure

The FPGA resources of the programmable logic portion of Xilinx Zynq UltraScale+FPGA can provide high throughput digital signal processing (DSP) and IP cores, such as digital up/down conversion (DUC/DDC) cores. It is easier to achieve FPGA acceleration through software defined radio development architecture, application programming interfaces, and FPGA infrastructure. This helps you get up and running quickly so you can focus on value-added IP. The FPGA system used for commonly used functions such as Fast Fourier Transform (FFT) and Finite Impulse Response (FIR) filters is a good starting point. Then, you can use the preferred Hardware Description Language (HDL) to add your IP blocks to the modular architecture. In addition to the FPGA architecture of the system, Xilinx UltraScale+RFSoC is also equipped with four onboard application processing units (APUs) and two real-time processing units (RPUs), suitable for applications that require independent operation of onboard embedded operating systems



ACRF47 can support full differential extraction of AD/DA channels, and users can define RF conditioning circuits according to their needs, supporting DC and AC coupling, as well as PA and LNA amplifier conditioning circuits. It can also support optional RF front-end, including Lo frequency converters, duplexers, PA, LNA, etc.

Functional Interface

·Core board


·Development Board



*Corresponding development board AXRF47, click to learn more>>

The main interfaces and resources of FPGA

Core configuration:

· Intgrateed Device of ZU47DR RF System on Chip (RFSoC)
           · Equipped with built-in digital up and down conversion and interpolation extraction functions
       · Supports 8-way transmission and 8-way reception

SOM minimum system:

Simulate RFMC connectors
           1. ADC/DAC fully differential lead out, supporting DC or AC coupling
2. VCM export supports setting common mode level

Digital RFMC connector
1. GTY export, supporting PCIE4.0X8 rate transmission
2. MIO export, supporting expansion of Ethernet, USB and other peripheral interfaces, supporting peripheral level
3. GTR export, supporting expansion of storage interfaces such as Sata/PCIE hard drives, and supporting external device levels
4. HD IO output, supporting peripheral device level

CACHE
1. PL DDR4 32bit single channel DDR4 cache supports 2600MHz, 2GB capacity
2. PS DDR4 64bit single channel DDR4 cache supports 2133MHz and 4GB capacity
3. QSPI flash, 1GB capacity

Debug Interface
1. JTAG lead out
2. Reset signal lead out

Cascading interface:

·Built in LMK04828 dedicated clock circuit
·Integrated 19.2MHz OCXO
·External clock synchronization
·Trigger synchronization
·SYSREF synchronization

Power supply:

·5V single power supply
·Heat sink embedded fan
·Typical power consumption, running 50% logic,8TX&8RX,TBD Watt

Sampling rate support:

·API supports real-time bandwidth of 30.72/61.44/122.88/245.76/491.52/983.04MHz (maximum support for 2.5GHz bandwidth)

Product parameters

Main parameters of the core board

Core board

ACRF47

FPGA model

XCZU47DR-2FFVE1156I

kernel CPU

Quad-core ARM Cortex-A53, MPCore
Dual-core ARM Cortex-R5F, MPCore

Memory

PS  DDR4,4GB
PL  DDR4,2GB

14 bit 5.0GSPS RF-ADC

8

14 bit 9.85GSPS RF-DAC

8

Decimation/ interpolation

1x, 2x, 3x, 4x, 5x, 6x, 8x, 10x, 12x, 16x, 20x, 24x, 40x

GTY / GTR

PL  GTY8 / PS  GTR4

System Logic Cell

930K

CLB LUTs

425K

Max.Dist.RAM

13.0Mb

Total Block RAM

38.0Mb

UltraRAM

22.5Mb

DSP Slices

4272

PCIe Gen4 x8

1

RF indicator testing




EVM emission: Under typical frequency bands, EVM is better than 1%








Flatness: Output flatness at 1GHz bandwidth








phase noise




Packing List

FPGA Core board

1

Structure Size

Size

115mm x 85mm

Stacking quantity

Core board 14 layer PCB board design, with reserved independent power layer and GND layer




Dimensional diagram of core board structure

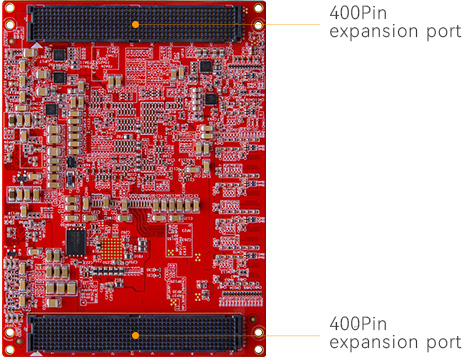

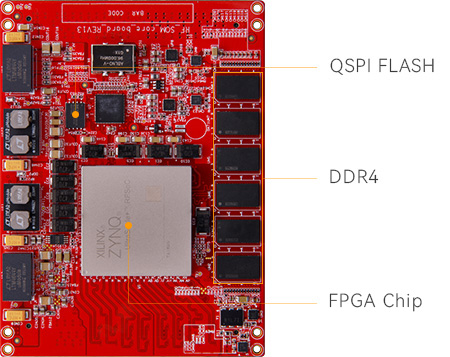

Core board hardware structure

The minimum system composition of the board RFSOC, with all expansion IO led out
