AD9280
Model
AN108Ean
6971390271032Price
$ 32
ALINX Baidu Brain EdgeBoard Edge AI Computing Board (FZ9D) XCZU9EG
Xilinx Kintex UltraScale FMC HPC Optical fiber FPGA Development board XCKU040
XILINX Spartan-7 FPGA Development Board XC7S50
Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU2CG
ALINX AUMO FMC HPC 16 channel GMSL2/GMSL1 on-board camera acquisition module
125msps DA conversion chip 32msps ad 1.2V reference voltage, differential current output
Module model
AN108
Ad model
AD9280
Ad bits
8bit
Ad maximum sampling rate
32MSPS
Input voltage range of ad channel
-5V ~ +5V
Number of ad channels
1
Da model
AD9708
Number of Da channels
1
Da digit
8bit
Da maximum refresh rate
125MSPS
Da channel pool voltage range
-5V ~ +5V
Module interface
32 pin 2.54mm spacing row seat, direction down

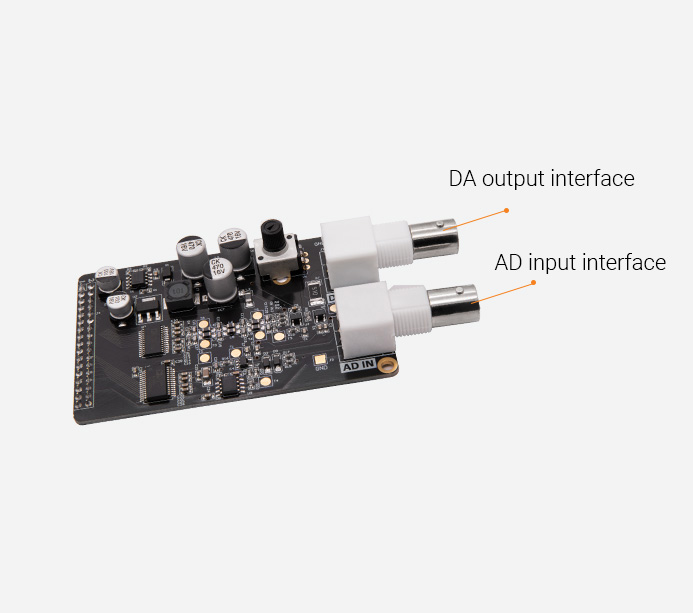

Input / output interface
BNC interface
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
